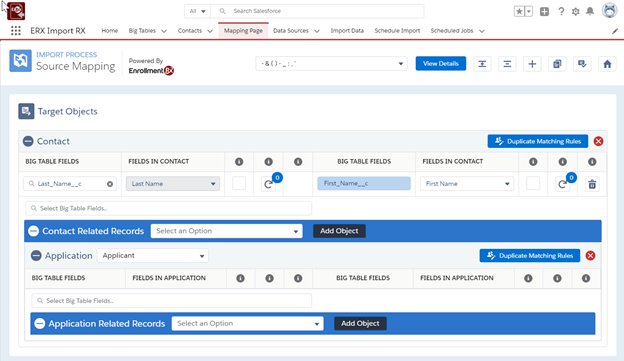

The Mapping Page tab, which is the starting point for configuring imports, has
been streamlined with a completely new UI (Fig. 1.3, below). From this page field
mappings, transformations, and duplicate matching rules are configured. Figure 1. 1.3 — Mapping Page Overview

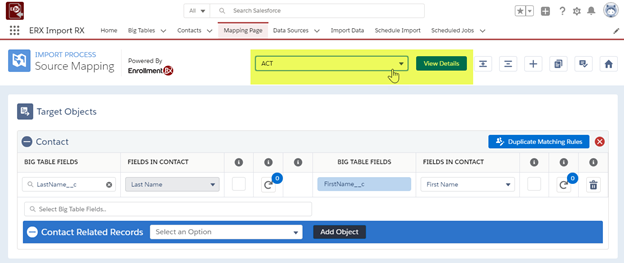

Select Data Source Control
Select Data Source: a picklist with all Data Sources created from the
Data Sources tab
View Details Button: takes the user to the Data Source record (Fig. 1.4)
Figure 2. 1.4 — Mapping Page Upper Left: Select Data Source
Big Table Fields Panel

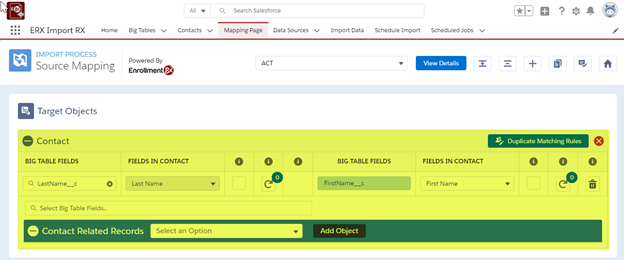

In the center of the page (Fig. 1.5), you’ll find the Target Objects section, where
you can add Objects and Big Table Fields, create Duplicate Matching rules, and set
transformations. The first target object is always the Contact object. Figure 3. 1.5 — Source Mapping
Target Objects Panel
Mapping Big Table Fields to Target Fields
Each object’s required fields are always displayed and cannot be
removed. In the new UI, there is no longer a need to map required fields because
they are already set (Fig. 1.6a). To map additional fields, start typing in the
Select Big Table Fields lookup.
In order to map to a child object, at least one field must be mapped for its
parent object. For example, in order to import to a Test Score object that
looks up to the Application object, at least one Application object field must be

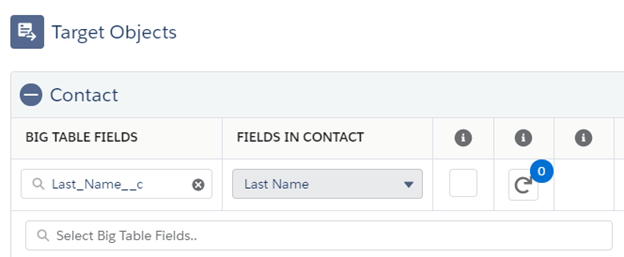

mapped. Figure 4. 1.6a — Mapping Page Right Panel: Target Objects before

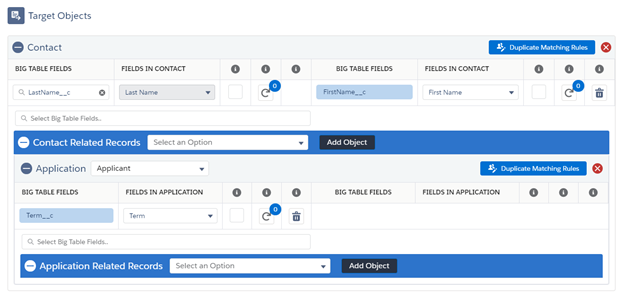

configuration Figure 5. 1.6b — Mapping Page: Target Objects after configuration Figure 6. 1.7 — The button for defining Transformations is now inline with
fields Figure 7. 1.8 — Mapping Page upper right corner of each object section:
Duplicate Matching Rules Button
Duplicate Matching Rules
Duplicate Matching Rules: See Duplicate Review
Screen. Mapping must be saved before this button can function.

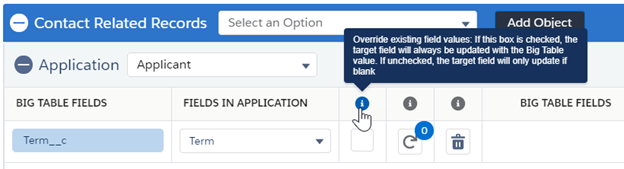

Override existing field values: check box to the right of each field
mapping. By default, Import Rx populates fields on matching target records only
if they are null. If you check the box, you override the default behavior so
that an already-populated field on the target record will be overwritten with
the incoming value. Leave the box unchecked if you want only to populate target
fields that are null. Figure 8. 1.9 — Overwrite existing field values checkbox
